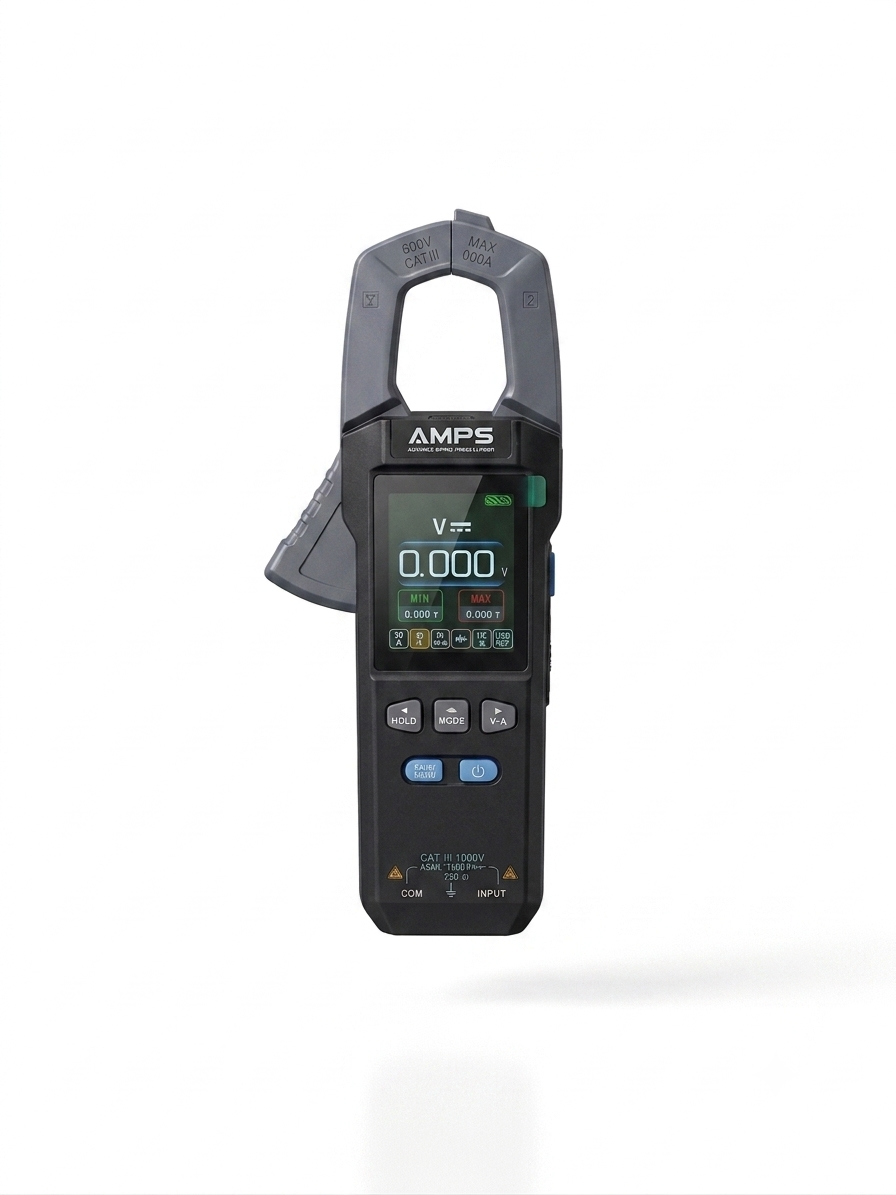

Smart Multimeter | Voltmeter | Clampmeter USB-C

Smart Multimeter | Voltmeter | Clampmeter USB-C

£39.90 GBP
£39.90 GBP
Sale Sold out
Taxes included.

 Technical Datasheet: AMPS SMM

1. General Specifications

Feature Specification
Model SMM
Display Counts 10,000 counts
Display Type 2.0-inch TFT Color Display (240 × 320 px)
Measurement Modes General Mode, Waveform Display Mode, Power Mode
Jaw Opening Size 25 mm maximum
Power Source Built-in 3.7 V, 1500 mAh Lithium Polymer battery
Charging Interface USB Type-C (5 V / 1 A)
Data Storage Up to 30 sets of historical data
Dimensions & Weight 193 × 74 × 32 mm | ~194 g

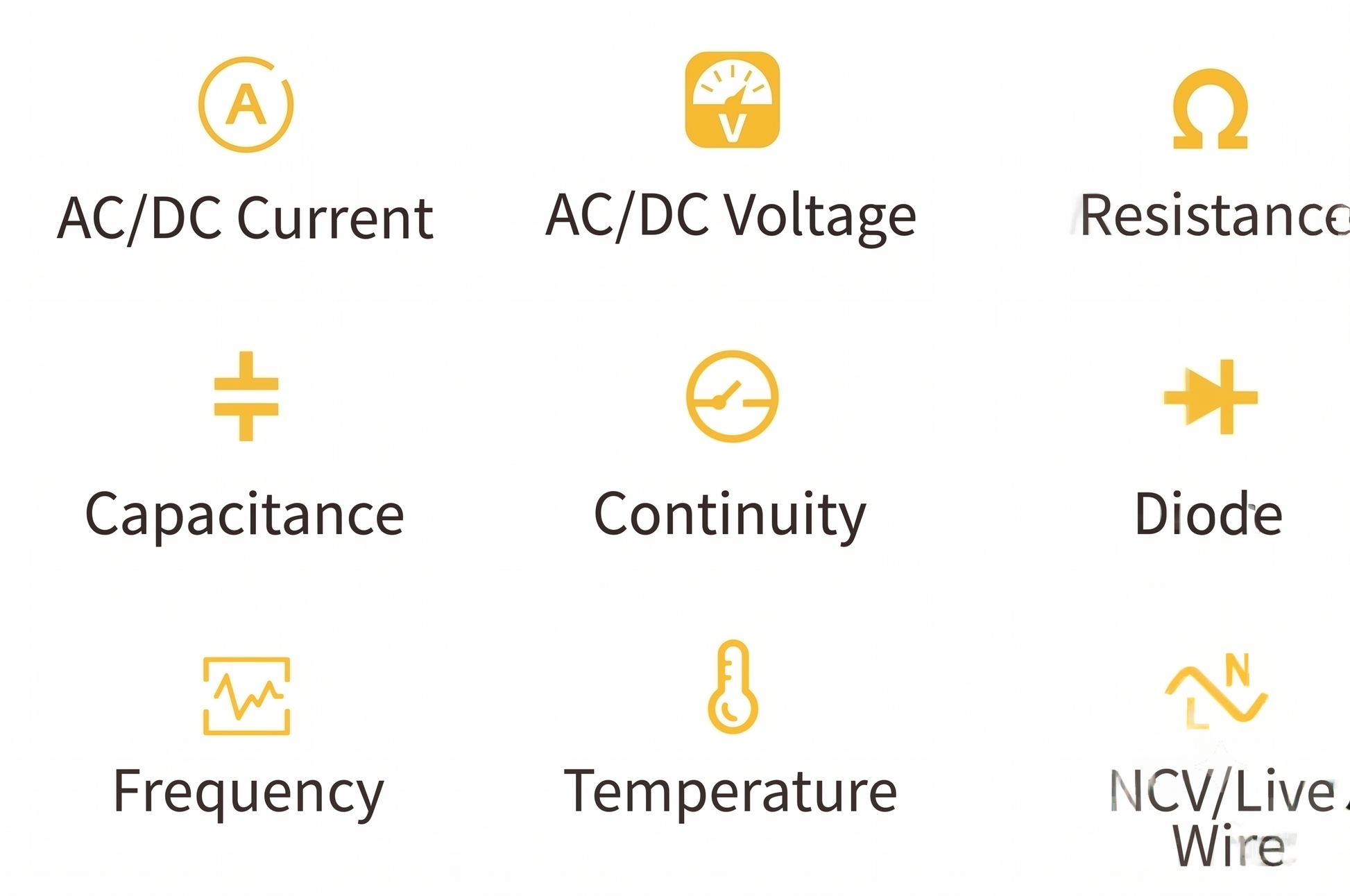

2. Technical Ranges & Accuracy

Measurement Function Range Basic Accuracy
DC Voltage 9.999 V / 99.99 V / 999.9 V ±(0.5% + 3)
AC Voltage 9.999 V / 99.99 V / 750.0 V ±(1.0% + 3)
AC / DC Current 99.99 A / 600.0 A ±(2.5% + 10)
Resistance 999.9 Ω to 99.99 MΩ ±(1.5% + 3)
Capacitance 9.999 nF to 99.99 mF ±(2.0% + 5) to ±(5.0% + 20)
Frequency 9.999 Hz to 9.999 MHz High Precision
Temperature -55 °C to +1300 °C (-67 °F to +2372 °F) Thermocouple-dependent


3. Key Functions & Features

  • True RMS: Ensures accurate measurement on non-sinusoidal AC signals.

  • Waveform Trend Graphing: Real-time data curve display over time.

  • Power Mode: Simultaneous display of voltage and current to calculate power output.

  • Non-Contact Voltage (NCV): Detects AC voltage safely through the clamp head.

  • Live Wire Detection: Single-probe zero/fire wire identification.

  • Utilities: Integrated LED flashlight, 10-level adjustable screen brightness, Auto Power-Off (APO), and firmware update support via USB-C.
