AMPS
AL24150
AL24150
Couldn't load pickup availability

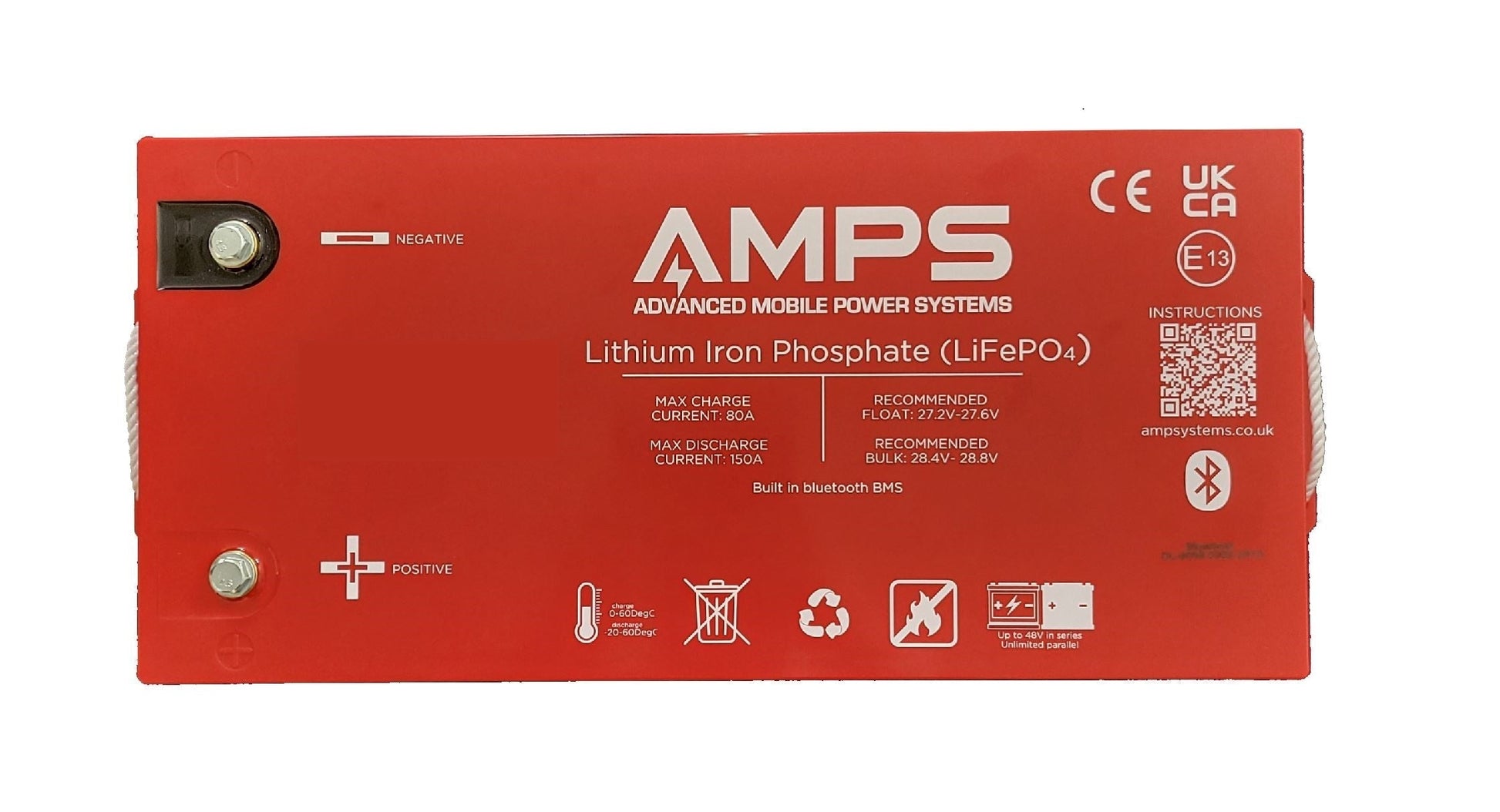

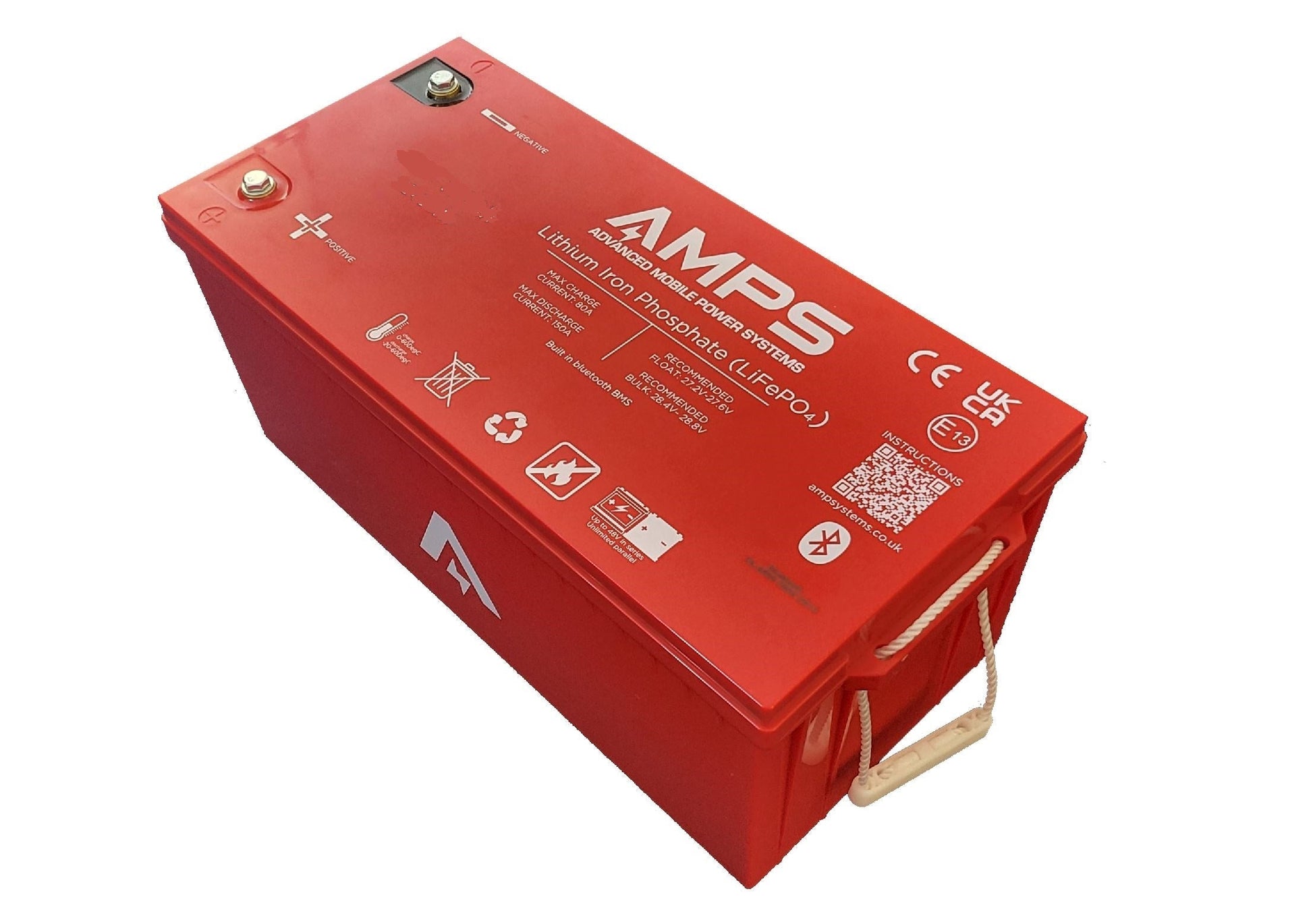

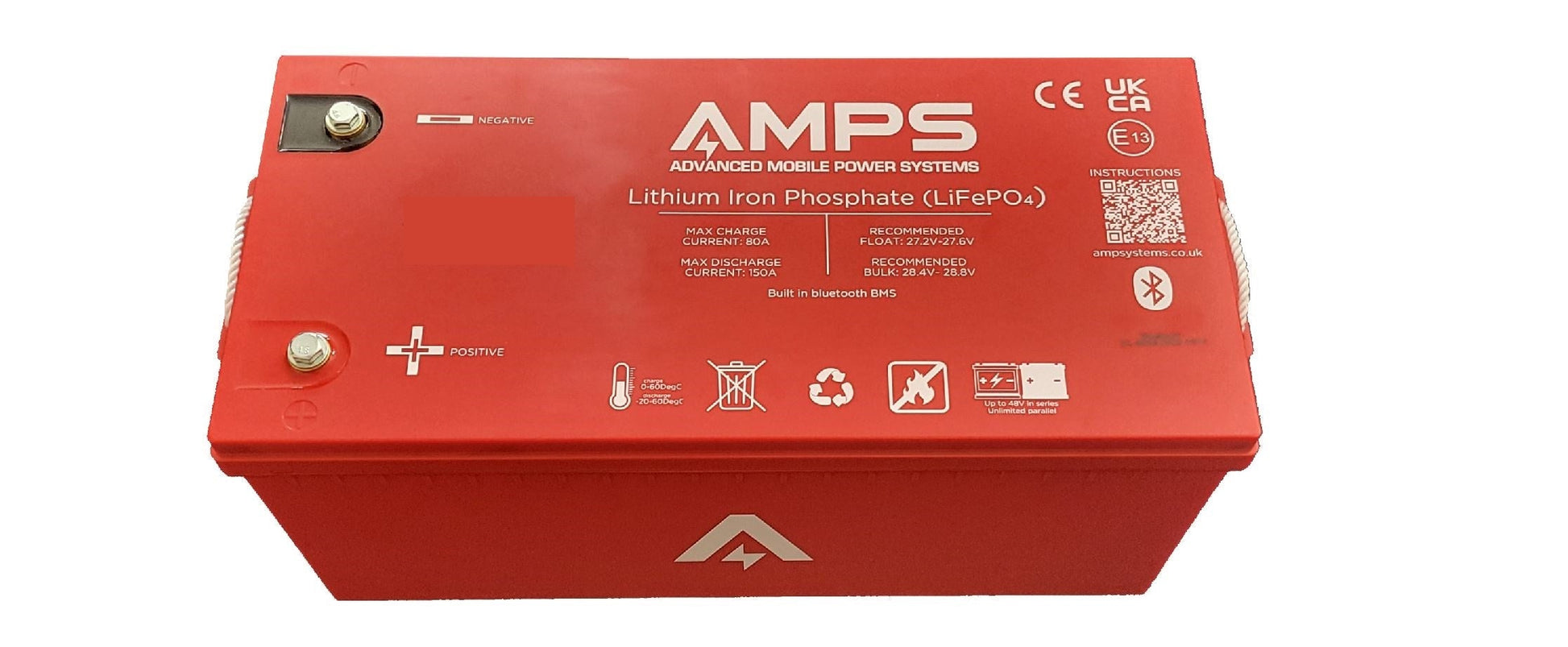

12V Lithium Batteries w/ Bluetooth BMS (except 20Ah model). Leisure Battery.
App can be downloaded here: SMART BMS for Android
App can be downloaded here for APP: APPLE app
60Ah | 75Ah | 80Ah | 100Ah | 120Ah | 150Ah | 200Ah | 300Ah | 400Ah | 24V 150Ah | 48V 100Ah - have bluetooth
20Ah model - does not have bluetooth function
Can be put in series up to 48V -unlimited parallel.
Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app): - Please note, we can not ship these to the European Union, yet. We are working on getting this sorted.
| Part No | Nominal Voltage | Charge Current | Discharge current | Nominal Capacity | Actual Capacity |
| AL24150 | 24V | 80A | 150A | 150Ah | 150Ah |
|
Battery Information PDF - including Bluetooth We are constantly updating our battery range and specifications. The battery information PDF is prone to change. We endeavour to keep this updated.
|
 Instructions |
THE BATTERY DIMENSIONS DOES NOT TAKE INTO ACCOUNT THE RING TERMINAL HEIGHT. PLEASE ADD RING TERMINAL AND BOLT HEAD HEIGHT TO THE DIMENSIONS
| Battery power | Weight of battery (kg) | Dimension of battery (cm) |
| 24V 150Ah | 35 | 53.2L x 23.5W x 20.7H |
For the T1 DIN Standard Battery posts with 8mm thread. Positive and negative pair. They make a good addition if you wish to maintain legacy connections. Dimensions of the posts are below:
